4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

Name: 4m X 2m X 03m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
Brand: HBGB
Price: 1 USD

Buy cheap 4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel product

Brand Name : HBGB

Model Number : GB-002

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion Mesh Basket

Material : iron wire Q195

Surface treatment : heavy zinc

zinc coating : more than 270g/m2

Color : Silver

Net wire : 2 - 4 mm

Lacing wire diameter : 2.0mm, 2.2mm, etc

SSelvedge wire : 3.4mm, 3.8mm, etc

Mesh size : 60x80mm,80x100mm,90x110mm

Basket size : 1*1*1m,2*1*1m,3*1*1m4*2*0.3m, 6*2*0.3m,etc

Contact Now

Hot Dipped Galvanized Iron Steel Gabion Stone Cage For Gabion Mesh Basket

Gabion Mesh Basket Description:

Hexagonal woven gabion mesh basket is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

Gabion mesh basket specifications:

Length(m)	Width(m)	Width(m)	Diaphragm quantity
1	1	1	0
2	1	1	1
3	1	1	2
4	1	1	3
2	1	0.5	1
3	1	0.5	2
1.5	1	1	1
1.5	1	0.5	1

Mesh size	(PVC wire)Inner/outside	Hot-dip galvanized	Galfan
60*80	2.0mm/3.0mm-2.8mm/3.8mm	2.2mm-3.8mm	2.2mm-3.8mm
80*100	2.2mm/3.2mm-3.0mm/4.0mm	3.2mm-4.0mm	3.2mm-4.0mm
100*120	2.4mm/3.4mm-3.2mm/4.2mm	3.4mm-4.2mm	3.4mm-4.2mm
120*150	2.7mm/3.7mm-3.5mm/4.5mm	3.7mm-4.5mm	3.7mm-4.5mm

Gabion Mesh Basket Features:

• Uniform wire coating for extra durability

• Flexible & permeable structure

• Tolerates differential settlement

• Easy to install

• No special labour is required for installation

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

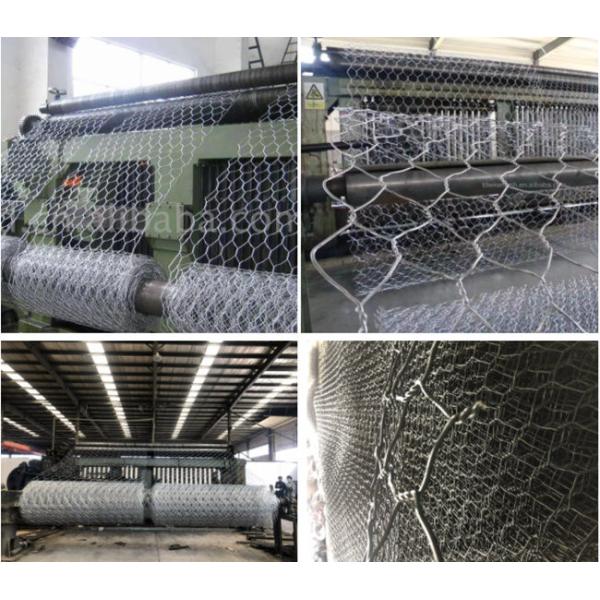

Process of production:

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel

Application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Stengthening structure of soil

Protection engineering of seaside area

4m X 2m X 0.3m Gabion Stone Cage Hot Dipped Galvanized Iron Steel
